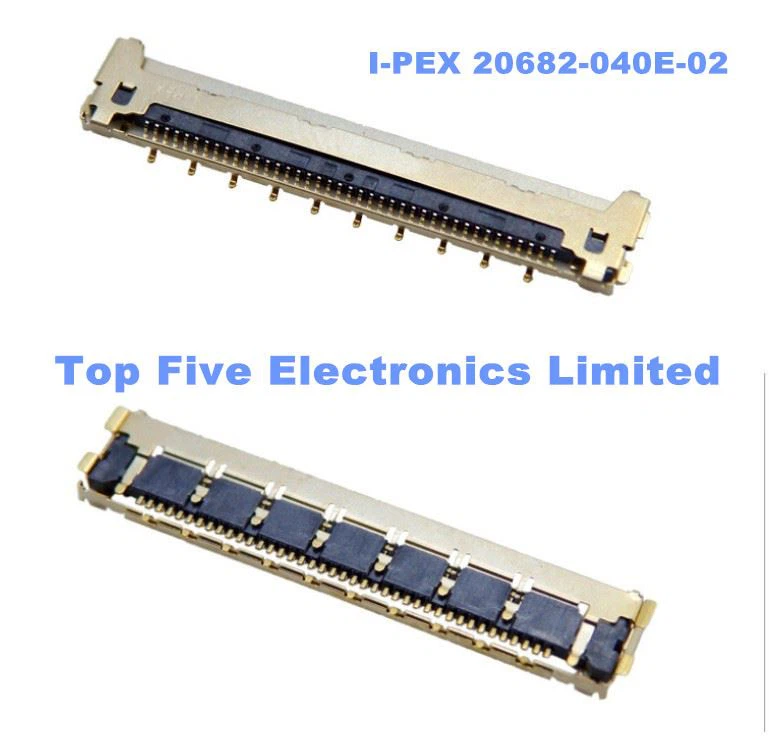

I-PEX 20682-040E-02

Contact pitch

0.400 mm

Max Height

1.10 mm

Depth

6.200

Width Formula

6.95+(0.4*?p) mm

Pin count

20 ,30, 40 ,50

Micro-Coaxial Wire (AWG)

#38 ,#40, #42, #44 ,#46

Current rating

0.1A AC/DC [AWG #44] per contact/up to 50   contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per   contact/up to 50 contacts 0.5A AC/DC [AWG #38] per   contact/up to 18 contacts 0.8A AC/DC [AWG #36] per   contact/up to 6 contacts 1.0A AC/DC [AWG #34] per   contact/up to 6 contacts

High Data Rate Standards

Thunderbolt™ 3 (20 Gbps/lane) USB® 3.1 Gen 2 (10 Gbps) eDP HBR 3 (8.1 Gbps) HDMI® 2.0 (6 Gbps) MiPi Gear 3 (5.8 Gbps) eDP HBR 2 (5.4 Gbps) USB® 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) eDP (2.7 Gbps)

Full EMI shielding

Yes

Mechanical lock

Yes

PLUG FOR CABLE ASSEMBLY

20

20679-020T-01

30

20679-030T-01

40

20679-040T-01

50

20679-050T-01

Plug parts

PLUG HOUSING

20

20680-020T-01

30

20680-030T-01

40

20680-040T-01

50

20680-050T-01

PLUG SHELL

20

3204-0201

30

3204-0301

40

3204-0401

50

3204-0501

PLUG LOCK BAR

20

20681-020T-01

30

20681-030T-01

40

20681-040T-01

50

20681-050T-01

RECEPTACLE

20

20682-020E-02

30

20682-030E-02

40

20682-040E-02

50

20682-050E-02
