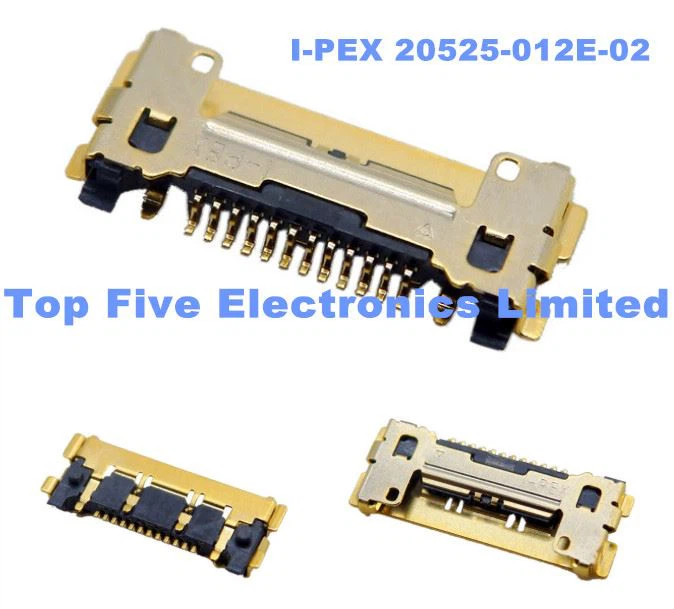

I-PEX 20525-012E-02
1. Pitch:0.4MM
2. Pin Number:12P
3. 100% Original I-PEX
4. SPQ:5000PCS
5. MOQ:100PCS
6. Lead time:5-10 days

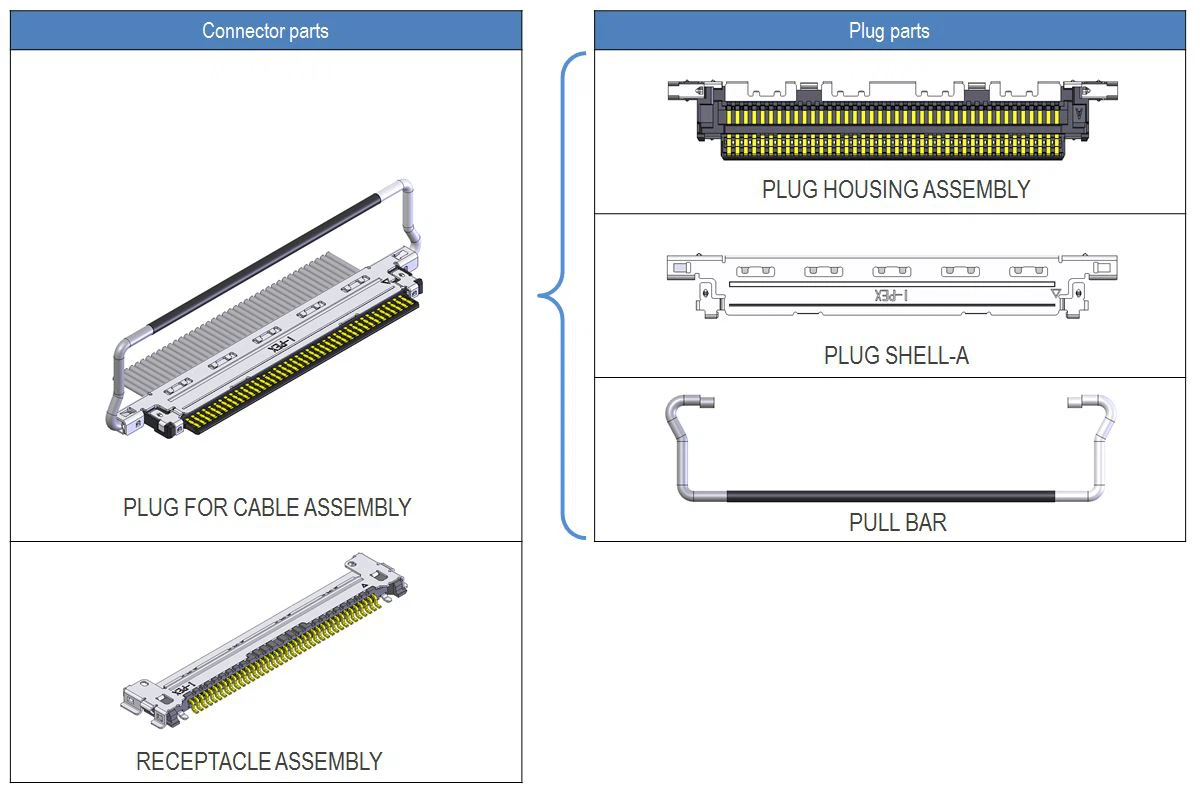

CABLINE-CA RECOMMENDED PART NUMBERS
Part Number Description | Pin count | Part Number | |
PLUG FOR CABLE ASSEMBLY | 10 | 20633-310T-01 | |
12 | 20633-312T-01 | ||
20 | 20633-320T-01 | ||
30 | 20633-330T-01 | ||
40 | 20633-340T-01 | ||
50 | 20633-350T-01 | ||
60 | 20633-360T-01 | ||
Plug parts | PLUG HOUSING | 10 | 20634-210T-02 |
12 | 20634-212T-02 | ||
20 | 20634-220T-02 | ||
30 | 20634-230T-02 | ||
40 | 20634-240T-02 | ||
50 | 20634-250T-02 | ||
60 | 20634-260T-02 | ||
PLUG SHELL | 10 | 2764-0101-003 | |
12 | 2764-0121-003 | ||
20 | 2764-0201-003 | ||
30 | 2764-0301-003 | ||
40 | 2764-0401-003 | ||
50 | 2764-0501-003 | ||
60 | 2764-0601-003 | ||
PLUG PULL BAR | 10 | 2766-0101 | |
12 | 2766-0121 | ||
20 | 2766-0201 | ||
30 | 2766-0301 | ||
40 | 2766-0401 | ||
50 | 2766-0501 | ||
60 | 2766-0601 | ||
RECEPTACLE | 10 | 20525-210E-02 | |
12 | 20525-212E-02 | ||
20 | 20525-220E-02 | ||
30 | 20525-230E-02 | ||
40 | 20525-240E-02 | ||
50 | 20525-250E-02 | ||
60 | 20525-260E-02 | ||
Contact Infos:
1. E-mail:Aimee@Topfive-Cable.Com
2. Skype ID: lucialiu50
Hot Tags: I-PEX 20525-012e-02,I-PEX 20525, manufacturers, suppliers, factory, customized, wholesale, price, I-PEX 20525-012E-02, I-PEX 20453-40P Micro Coaxial Cable, IDC1.27 WIRE Harness, Connectors, I-PEX 20474-040E, MOLEX 501646-4000 TO SMH200-40P LVDS CABLE
I-PEX 20525-012E-02
1. Pitch:0.4MM
2. Pin Number:12P
3. 100% Original I-PEX
4. SPQ:5000PCS
5. MOQ:100PCS
6. Lead time:5-10 days
CABLINE-CA RECOMMENDED PART NUMBERS
Part Number Description | Pin count | Part Number | |
PLUG FOR CABLE ASSEMBLY | 10 | 20633-310T-01 | |
12 | 20633-312T-01 | ||
20 | 20633-320T-01 | ||
30 | 20633-330T-01 | ||
40 | 20633-340T-01 | ||
50 | 20633-350T-01 | ||
60 | 20633-360T-01 | ||
Plug parts | PLUG HOUSING | 10 | 20634-210T-02 |
12 | 20634-212T-02 | ||
20 | 20634-220T-02 | ||
30 | 20634-230T-02 | ||
40 | 20634-240T-02 | ||
50 | 20634-250T-02 | ||
60 | 20634-260T-02 | ||
PLUG SHELL | 10 | 2764-0101-003 | |
12 | 2764-0121-003 | ||
20 | 2764-0201-003 | ||
30 | 2764-0301-003 | ||
40 | 2764-0401-003 | ||
50 | 2764-0501-003 | ||
60 | 2764-0601-003 | ||
PLUG PULL BAR | 10 | 2766-0101 | |
12 | 2766-0121 | ||
20 | 2766-0201 | ||
30 | 2766-0301 | ||
40 | 2766-0401 | ||
50 | 2766-0501 | ||
60 | 2766-0601 | ||
RECEPTACLE | 10 | 20525-210E-02 | |
12 | 20525-212E-02 | ||
20 | 20525-220E-02 | ||
30 | 20525-230E-02 | ||
40 | 20525-240E-02 | ||
50 | 20525-250E-02 | ||
60 | 20525-260E-02 | ||
Contact Infos:
1. E-mail:Aimee@Topfive-Cable.Com
2. Skype ID: lucialiu50
Hot Tags: I-PEX 20525-012e-02,I-PEX 20525, manufacturers, suppliers, factory, customized, wholesale, price, I-PEX 20525-012E-02, I-PEX 20453-40P Micro Coaxial Cable, IDC1.27 WIRE Harness, Connectors, I-PEX 20474-040E, MOLEX 501646-4000 TO SMH200-40P LVDS CABLE
Topfve cable was established in 2010 years.Our products are widely used in electrical products, industrial display screen, Medical display, UAV unmanned aerial vehicle and so on.
