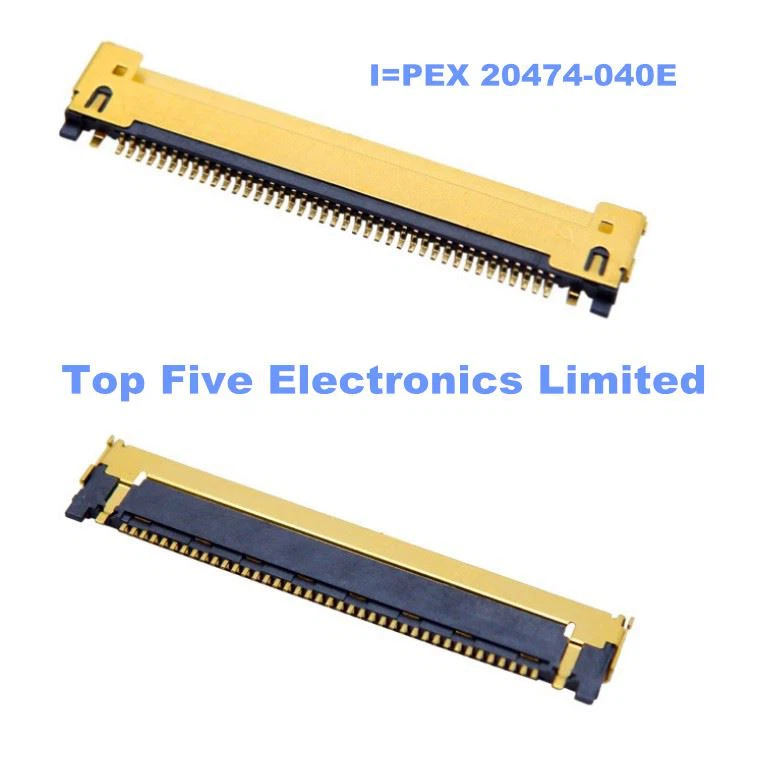

I-PEX 20474-040E
1. Pitch:0.4MM
2. Pin Number:30P
3. 100% Original I-PEX
4. SPQ:5000PCS
5. MOQ:100PCS
6. Lead time:5-10 days
0.4 mm pitch, horizontal insertion and removal, ultra-fine coaxial connector with mechanical lock (connector height: 0.825 mm.)

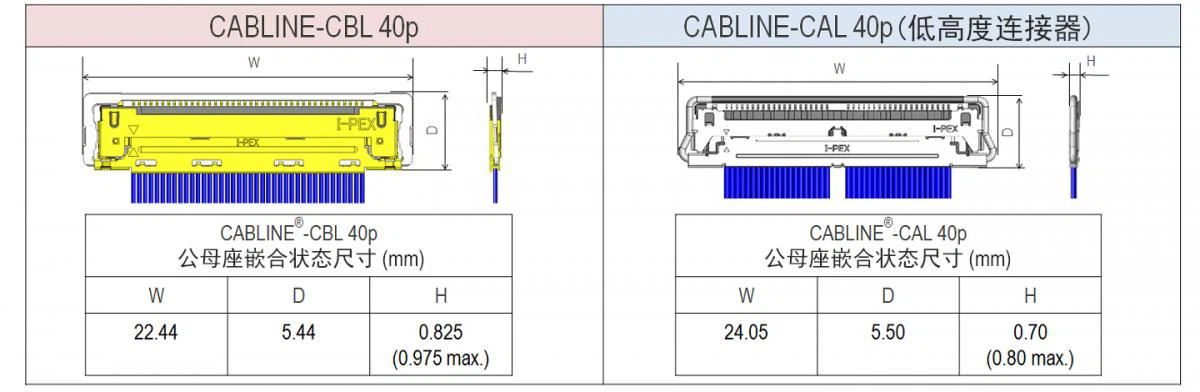

Low profile connector: Mating height 0.975mm max. (0.825 mm nominal)
Optional mechanical lock to prevent incomplete insertion of the connector or disconnection of the connector
Multi-point grounding design has good anti-EMI performance

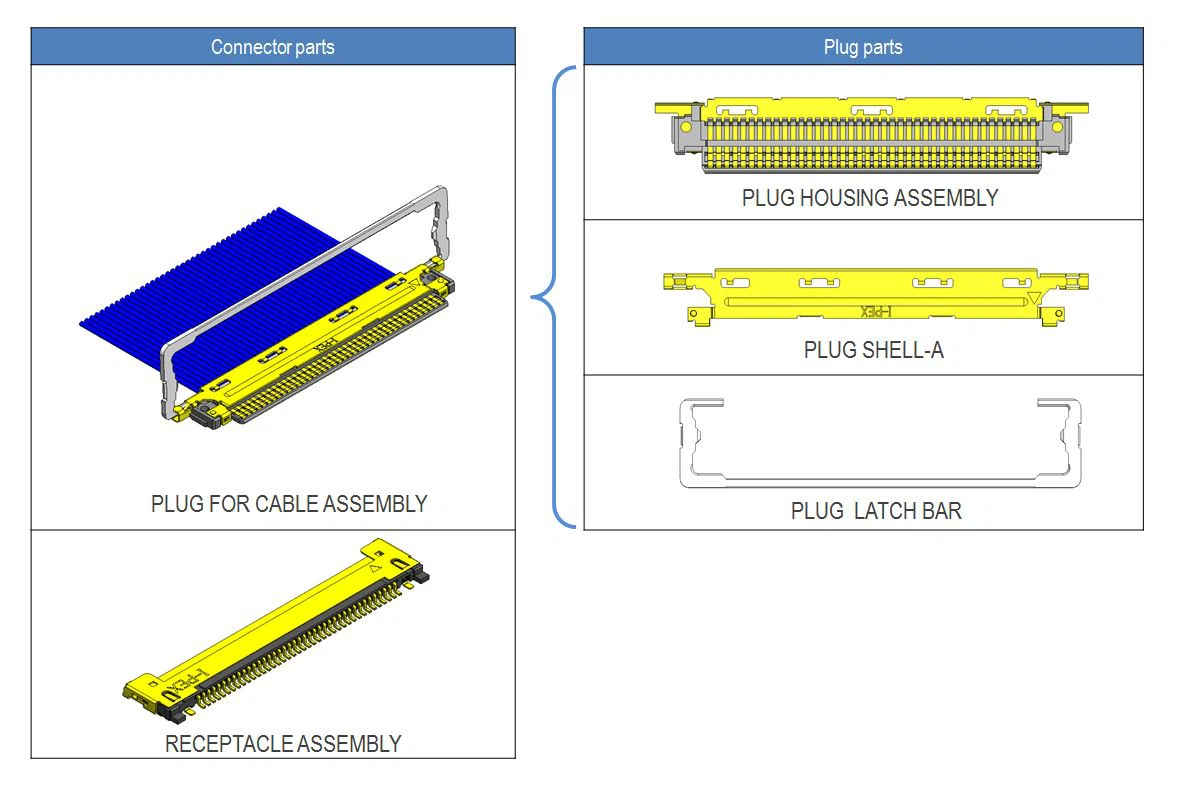

CABLINE-CBL RECOMMENDED PART NUMBERS
Part Number Description | Pin count | Part Number | |
PLUG FOR CABLE ASSEMBLY | 30 | 20472-030T-10R | |
40 | 20472-040T-10R | ||
Plug parts | PLUG HOUSING | 30 | 20473-030T-10R |
40 | 20473-040T-10R | ||
PLUG SHELL | 30 | 2618-0301 | |
40 | 2618-0401 | ||
PLUG LATCH BAR | 30 | 2619-0300 | |
40 | 2619-0400 | ||
RECEPTACLE | 30 | 20474-030E-12R | |
40 | 20474-040E-12R | ||
Our Pre-sale Service: we can provide you the professional advice .we can offer you within one day. we can provide professional drawing within one day. Making samples within 1-3 days.
Our Engineer: we have 3-5 experienced engineers who used to work at Hitachi for 15 years.
.
Our After-sale Service: We will re-make the replacement once these cables have quality issue.
Product Application Areas: electrical products, industrial display screen, Medical display PC etc.
Why choose us: The best service , the best price, the best quality and the small MOQ.
Packing:7 -layers export carton+ waterproof bag+ desiccant+ PE foam
Contact Infos:
1. E-mail:Aimee@Topfive-Cable.Com
2. Skype ID: lucialiu50
Hot Tags: I-PEX 20474-040e, manufacturers, suppliers, factory, customized, wholesale, price, FI-X30HL TO DF13-40DS LVDS CABLE, PHR-5 TO PHR-5 WIRE Harness, I-PEX 20525-012E-02, MOLEX 501646-4000 TO SMH200-40P LVDS CABLE, I-PEX 20346-030T, I-PEX 20525-040E-02
