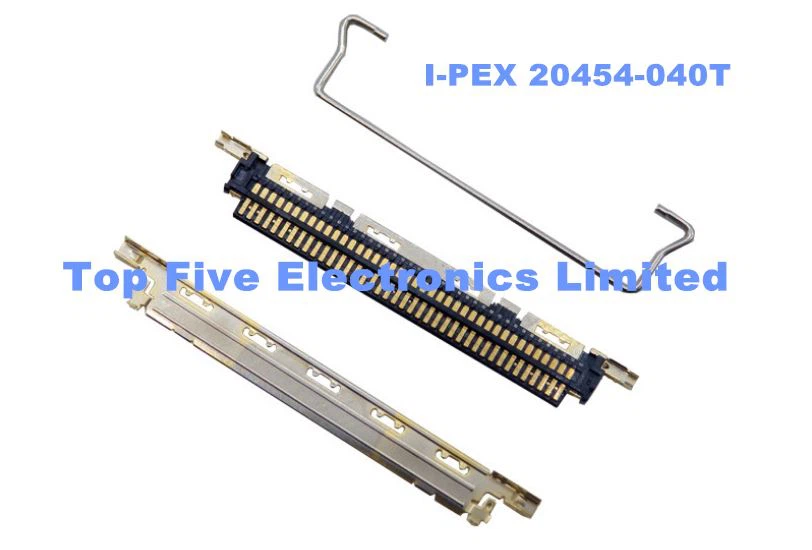

I-PEX 20454-040T
1. Pitch:0.5MM
2. Pin Number:40P
3. 100% Original I-PEX
4. SPQ:5000PCS
5. MOQ:100PCS
6. Lead time: 5-10 days
0.5 mm pitch, Horizontal mating type Micro-coaxial connector with mechanical lock (VESA standard connector)
· High-data-rate transfer, ideal for Thunderbolt™ 3 (20 Gbps/lane) applications
· Mechanical locking bar prevents incomplete mating and back-out/un-mating
· Multiple connector options with I-PEX VS series
Contact Pitch (mm):0.500
Mated Height (mm):1.10 Max.(1.00 mm Nominal)
Available Pin Count:20 30 40 50
Micro-Coaxial Cable (AWG): #36 #38 #40 #42 #44 #46
Mating type: Horizonta
