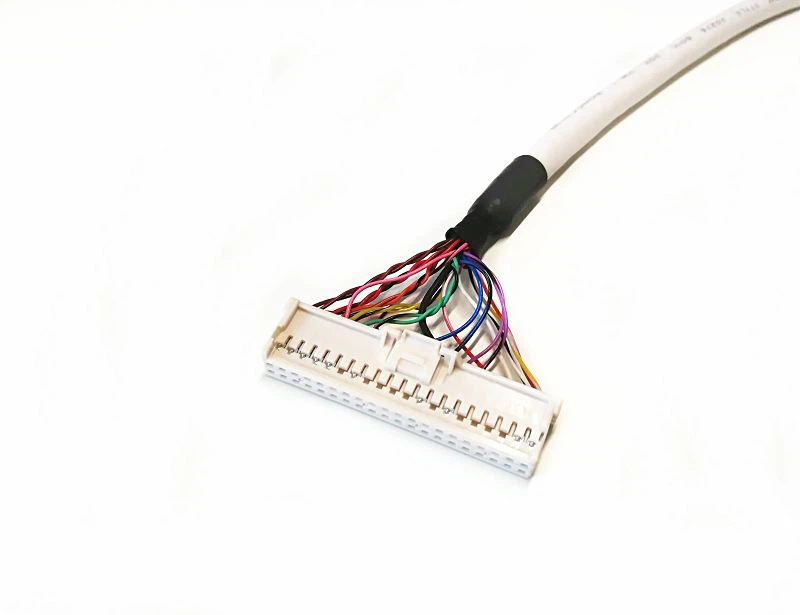

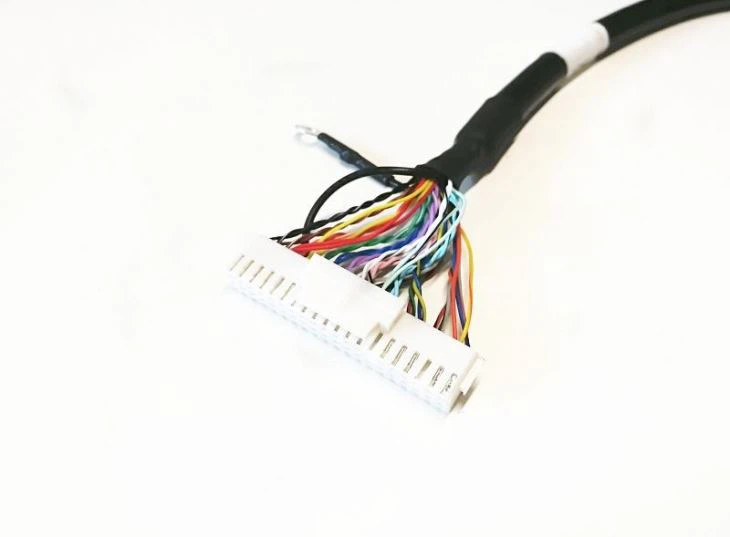

MOLEX 501646-4000 To SMH200-40P LVDS Cable

MOLEX 501646-4000 TO SMH200-40P LVDS CABLE

1. Panel type: MOLEX 501646-4000

2. Broad side: Equivalent SMH200-40P

3. Wire: Custom UL20276#28AWG 10P +AEB BEIGE round cable

4. Length: Option

5. MOQ: 250PCS

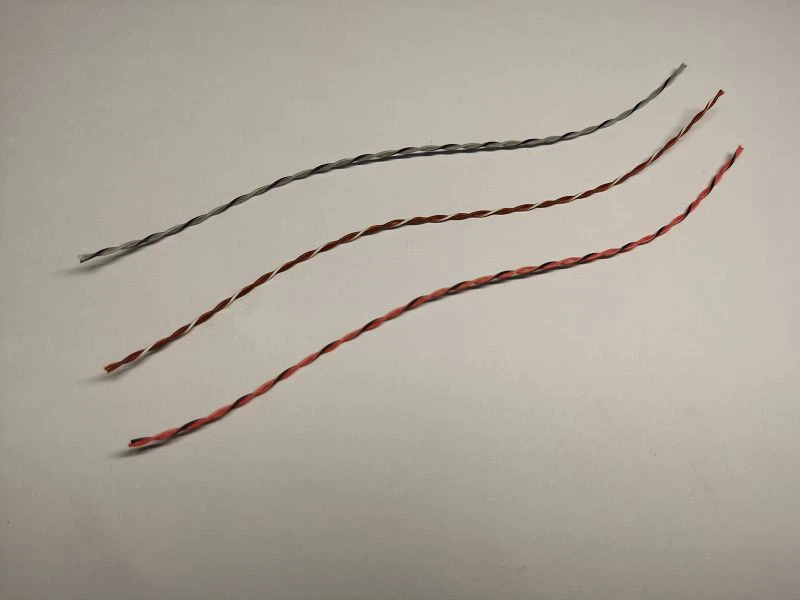

Our custom UL20276 Round cable: Pls see our twist wires as below, our custom twist wires is better than common UL20276, the length is only 9.27MM. thus we can make more than 1 meter round cable.

LVDS technical items

  It is widely used in high-speed systems. This article gives a simple example to see the specific connection method. In the DSLAM (Digital Subscriber Line Access Module) solution of PMC in Canada, LVDS technology is used to realize point-to-point single-board interconnection. The system structure is very extensible, realizes high integration on line cards, and can fully meet business dispersion , Control centralization brings a large amount of business data and control flow communication requirements. Figure 4 depicts the connection between the line card and the line card, and between the line card and the backplane of the system. The simplex method is used, so two pairs of lines are required to achieve two-way communication. The figure shows three different connection modes, from top to bottom: there is a corresponding connection chip; terminal matching is achieved when across racks; terminal matching is achieved when the same-layer chassis is implemented. Connecting a transformer in series at the receiving end can reduce interference and avoid the influence of the large potential difference between the LVDS driver and the receiver.

FAQ:

1.      Factories: one is in Shenzhen city, the other is in dongguan city

2.      No. of workers: about 100

3.      Annual sales:USD3,000,000

Contact Infos:

1.      E-mail:Aimee@Topfive-Cable.Com

2.      Skype ID: lucialiu50
