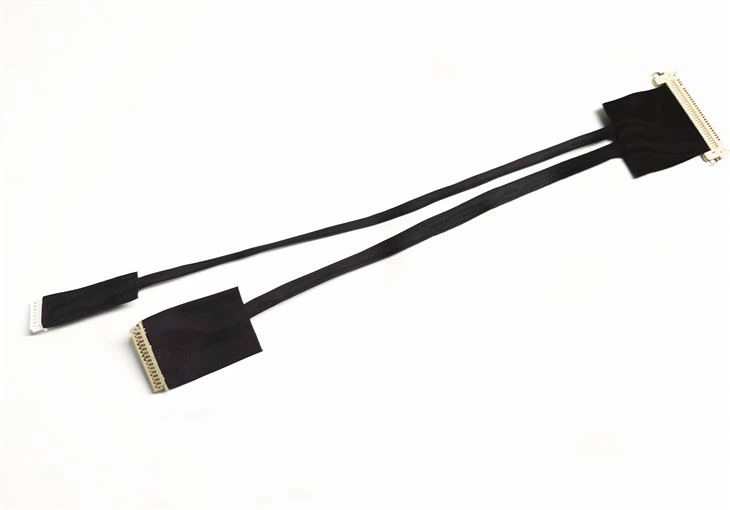

FI-X30HL TO DF13-40DS,51021 LVDS CABLE

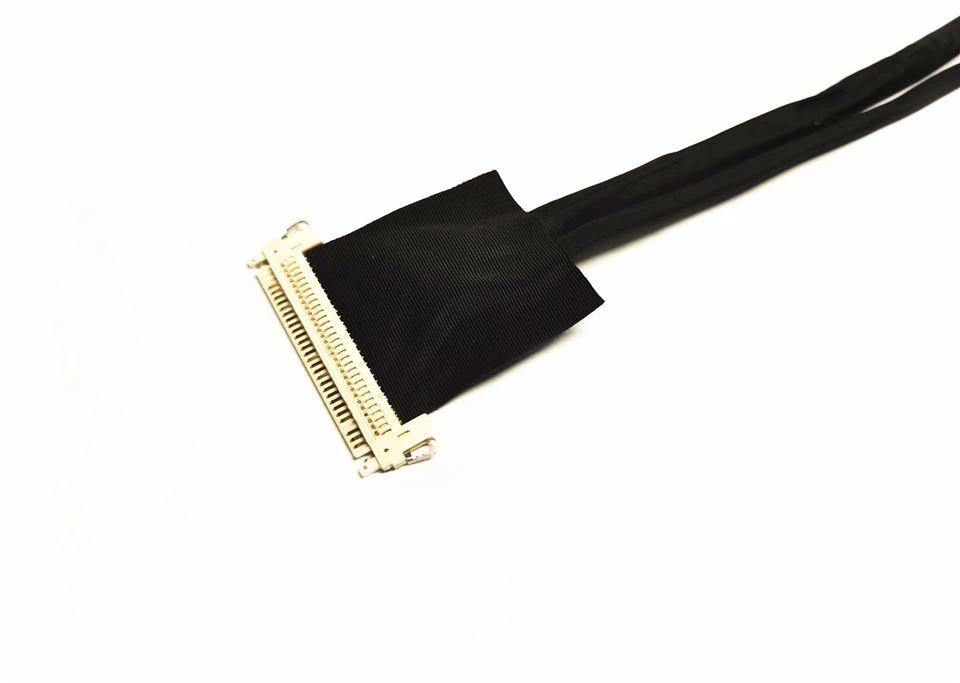

1. Panel type: Equivalent FI-X30HL

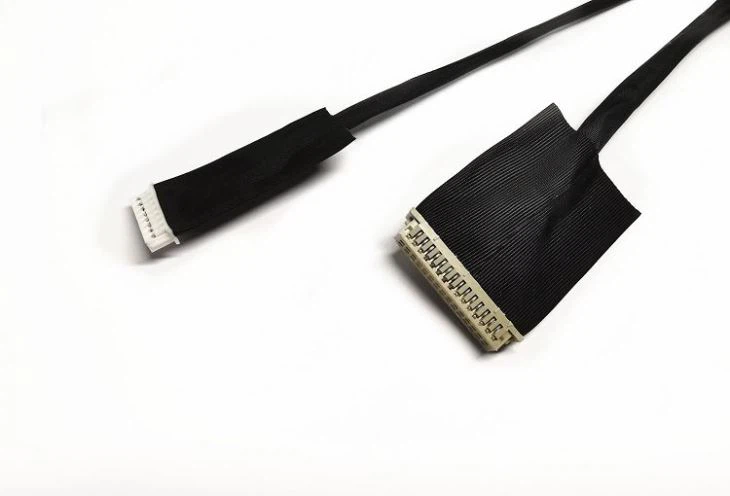

2. Broad side: Equivalent DF13-40DS & 51021-10P
3. Wire: UL1571#28AWG OD0.6MM
4. Length: Option
5. MOQ: 250PCS

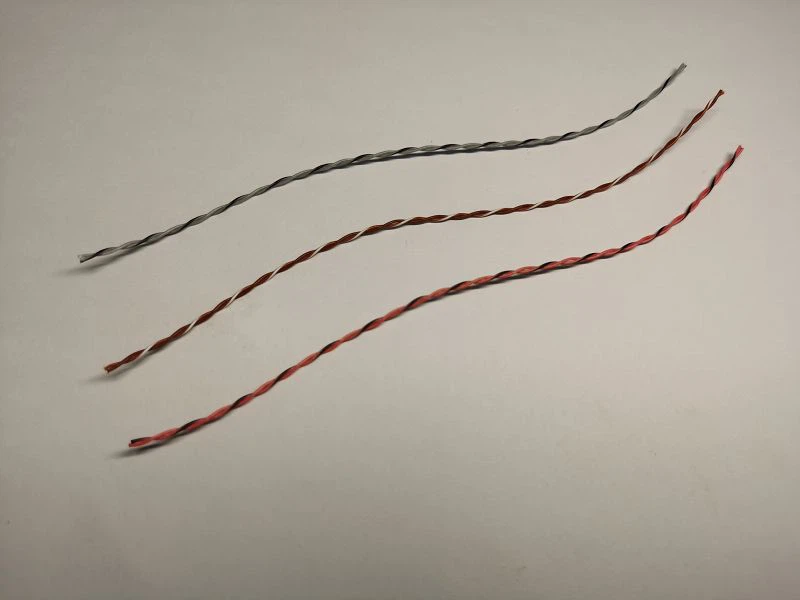

Our custom UL20276 Round cable: Pls see our twist wires as below, our custom twist wires is better than common UL20276 , the length is only 9.27MM. thus we can make more than 1 meter round cable.
LVDS introduction
LVDS (Low Voltage Differential Signaling) is a low-swing differential signal technology, which enables signals to be transmitted on a differential PCB line pair or balanced cable at a rate of several hundred Mbps. Its low-voltage amplitude and low-current drive output achieve low Noise and low power consumption.
For decades, the use of 5V power supply has simplified the interface between different technologies and manufacturers’ logic circuits. However, with the development of integrated circuits and the requirement for higher data rates, low-voltage power supply has become an urgent need. Lowering the supply voltage not only reduces the power consumption of the high-density integrated circuit, but also reduces the heat dissipation inside the chip, which helps to improve the degree of success.
FAQ:
1. Materials: some materials from JAE, Molex, JST , HRS ,I-PEX etc, other materials from local suppliers.
2. Wire quality: All wire must be UL approved
3. Crimpping quality: As per IPC
Contact Infos:
1. E-mail:Aimee@Topfive-Cable.Com
2. Skype ID: lucialiu50
Hot Tags: FI-X30Hl to df13-40ds,51021 LVDS cable, manufacturers, suppliers, factory, customized, wholesale, price, FI-S20S TO PHDR-30VS LVDS CABLE, I-PEX 20682-040E-02, MOLEX 501646-4000 TO SMH200-40P LVDS CABLE, Micro Coaxial Cable, EHR-6 TO EHR-4 WIRE Harness, IDC1.27 WIRE Harness
