FFC LVDS CABLE
1. Panel type: Equivalent FI-X30HL,FI-RE51HL and other connector
2. Broad side: tin
3. Wire: UL20706 28AWG
4. Length: Option
5. MOQ: 250PCS

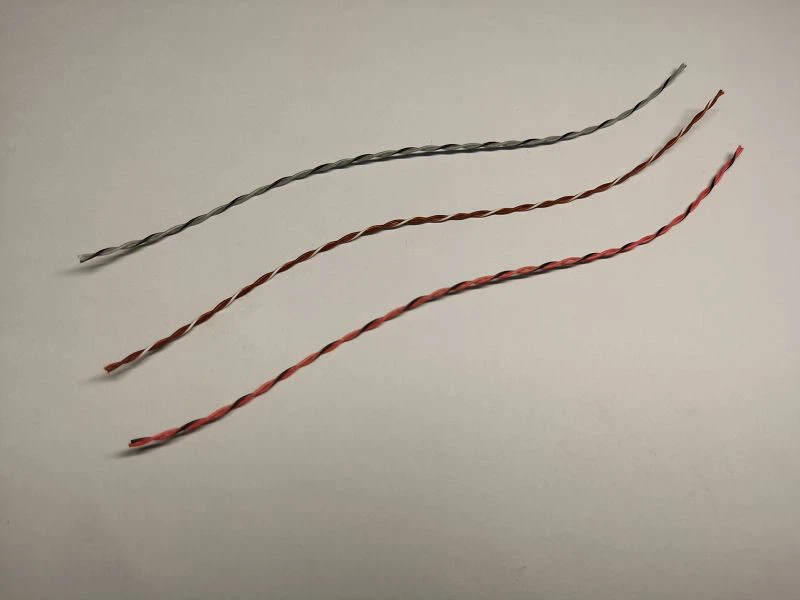

Our custom UL20276 Round cable: Pls see our twist wires as below, our custom twist wires is better than common UL20276 , the length is only 9.27MM. thus we can make more than 1 meter round cable.
Our Pre-sale Service: we can provide you the professional advice .we can offer you within one day. we can provide professional drawing within one day. Making samples within 1-3 days.
Our Engineer: we have 3-5 experienced engineers who used to work at Hitachi for 15 years.
Our Quality: we use Original connectors or High quality Equivalent connectors and High-precision automation equipment. Organize production strictly according to the ISO9001 .All cables must be 100% testing ,even 200% testing .
Our After-sale Service: We will re-make the replacement once these cables have quality issue.
Product Application Areas: electrical products, industrial display screen, Medical display PC etc.
Why choose us: The best service , the best price, the best quality and the small MOQ.
Packing:7 -layers export carton+ waterproof bag+ desiccant+ PE foam
LVDS CABLE is mainly used for signal transmission between LCD TVs, monitors and other screens and driver boards. In a word, as long as there are products with LCD screens, LCD screen cables are needed.
Commonly used connectors for LVDS CABLE are JAE FI-X30HL series, FI-RE41HL/51HL series, FI-E30HL series, HRS FX15-41P series, I-PEX20345 series, 20347 series, 20373 series, 20474 series, and the board end domestic market is general It is DP2.0 series, JST PHD series, JST SH1.0 series, ACES88252 series, etc.
Regardless of whether the LVDS transmission medium used is a PCB wire pair or a cable, measures must be taken to prevent the signal from being reflected at the medium terminal and reduce electromagnetic interference. LVDS requires the use of a termination resistor (100±20Ω) that matches the medium. This resistor terminates the circulating current signal and should be placed as close as possible to the receiver input. The LVDS driver can drive twisted-pair pairs at speeds exceeding 155.5 Mbps for distances exceeding 10 m. The actual limits on speed are: ①The speed of TTL data sent to the drive; ②The bandwidth performance of the medium. Usually a multiplexer is used on the driver side and a demultiplexer is used on the receiver side to implement multiplexing conversion of multiple TTL channels and one LVDS channel to increase signal rate and reduce power consumption. And reduce the transmission medium and the number of interfaces, reduce the complexity of the equipment.
The LVDS receiver can withstand at least ±1V of the ground voltage change between the driver and the receiver. Since the typical bias voltage of the LVDS driver is +1.2V, the sum of the ground voltage change, the driver bias voltage and the lightly coupled noise, the input of the receiver is a common-mode voltage with respect to the receiver's ground. The common mode range is: +0.2V~+2.2V. It is recommended that the input voltage range of the receiver is: 0V~+2.4V.
.
