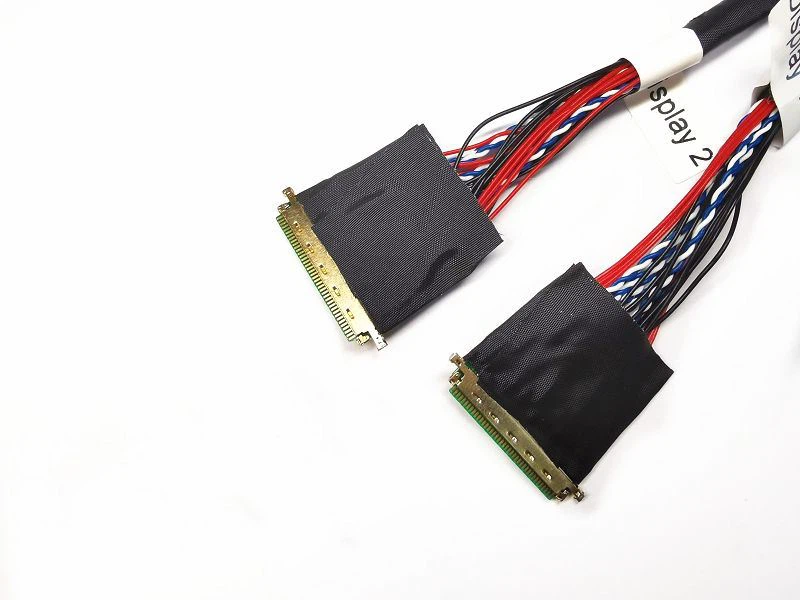

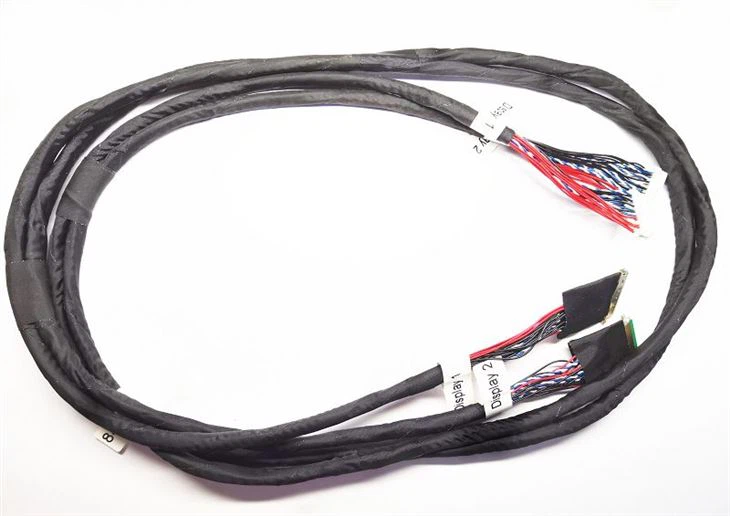

20453-40P With PCB TO DF13-40DS LVDS CABLE
1. Panel type: Equivalent 20453-40P with PCB
2. Broad side: Equivalent DF13-40DS
3. Wire: UL1571#28AWG OD0.6MM
4. Cover: Acetate tape
5. Length: Option
6. MOQ:250PCS
Our Pre-sale Service: we can provide you the professional advice .we can offer you within one day. we can provide professional drawing within one day. Making samples within 1-3 days.
Our Engineer: we have 3-5 experienced engineers who used to work at Hitachi for 15 years.
Our Quality: we use Original connectors or High quality Equivalent connectors and High-precision automation equipment. Organize production strictly according to the ISO9001 .All cables must be 100% testing ,even 200% testing .
Our After-sale Service: We will re-make the replacement once these cables have quality issue.
Product Application Areas: electrical products, industrial display screen, Medical display PC etc.
Why use LVDS CABLE:
(1) High-speed transmission capability
The low-swing output du of the constant current source mode of LVDS technology means that LVDS can be driven at a high speed. For example, for a point-to-point dao connection, the transmission rate can reach 800Mbit/s.
(2) Low noise/low electromagnetic interference
LVDS signals are low-voltage differential signals. We know that the differential data transmission method is more resistant to common-mode input noise than the single-wire data transmission. On the two differential signal lines, the current direction and voltage amplitude are opposite, and the receiver only cares about the difference between the two signals. Therefore, when noise is coupled to two lines at the same time in a common mode, it can be canceled, and the electromagnetic fields around the two signal lines also cancel each other. Therefore, the electromagnetic radiation of two differential signal lines is much smaller than that of TTL single-wire signal transmission. Moreover, the constant current source driving mode is not easy to generate ringing and switching spike signals, which further reduces noise.
