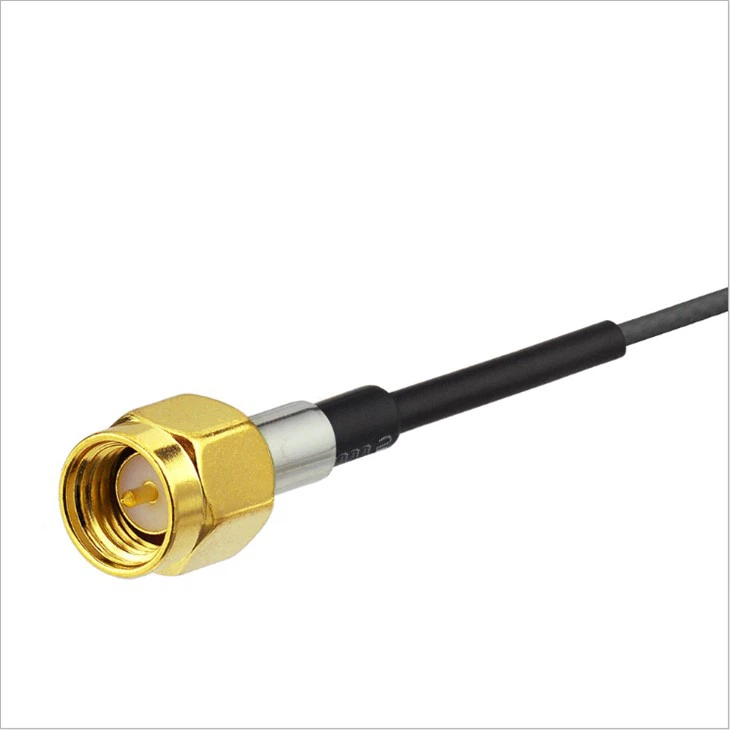

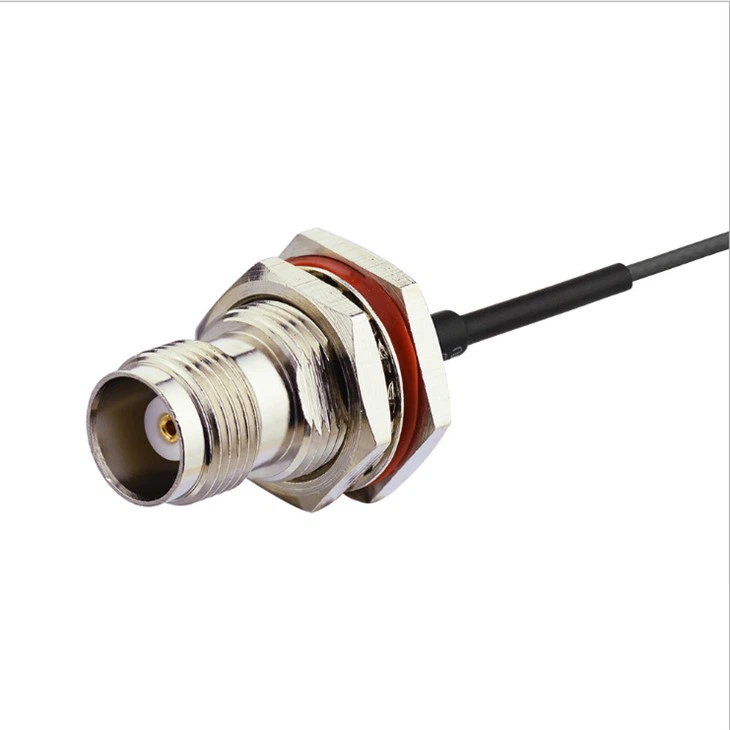

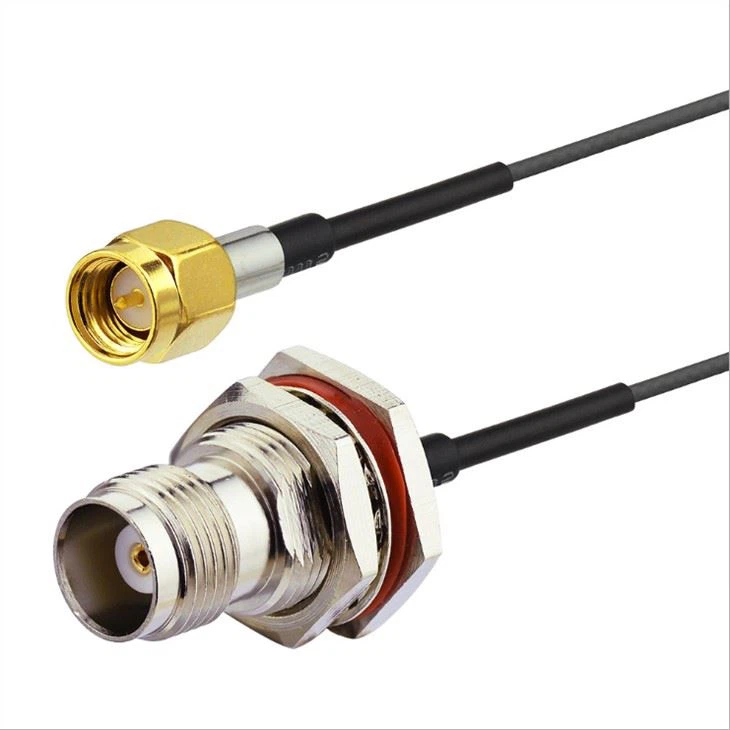

SMA MALE TO BNC Female RF JUMPER

RG174 Coax Construction/RG174 同轴电缆结构

OD/直径 (mm)

Conductor/导体:

7/0.16 Bare Copper-Clad Steel (BCCS)/裸铜包钢

0.48

Dielectric/绝缘体:

Polyethylene (PE) /聚乙烯

1.52

Shield/屏蔽层:

Tinned Copper (TC)/镀锡铜

1.93

Jacket/护套:

Polyvinylchloride (PVC)/聚氯乙烯

2.80

RG   174 Cable Physical Characteristics/RG 174 电缆物理特性

Weight per/重量100m:

1.19kg

Minimum bend radius/最小弯曲半径:

25mm

Operating temperature range/工作温度范围:

－40℃ to +75℃

RoHS compliance/符合RoHS:

2011/65/EU (RoHS)

RG-174   Cable Electrical Characteristics/RG-174 电缆电气特性

Impedance/阻抗:

50

+/- 2 ohms

Capacitance/电容:

101

pF/m. max

Maximum voltage/最大电压:

1100

Volts

Velocity of propagation/速率:

66

%

Operating Frequency/工作频率:

1

GHz

Screening effectiveness/屏蔽效率

≥ 40

dB (up to 1 GHz)

Insulation resistance/绝缘电阻:

≥ 1 x 108

MΩm

Max. operating voltage/最大工作电压

≤ 0.85

kVrms (at sea level)

RG174 Attenuation/RG174 衰减:

Freq/频率(MHz)

Typical/典型值(dB/m)

Max. CW power/功率 最大值

100

0.276

117

400

0.623

59

700

0.886

44

1000

1.12

37
