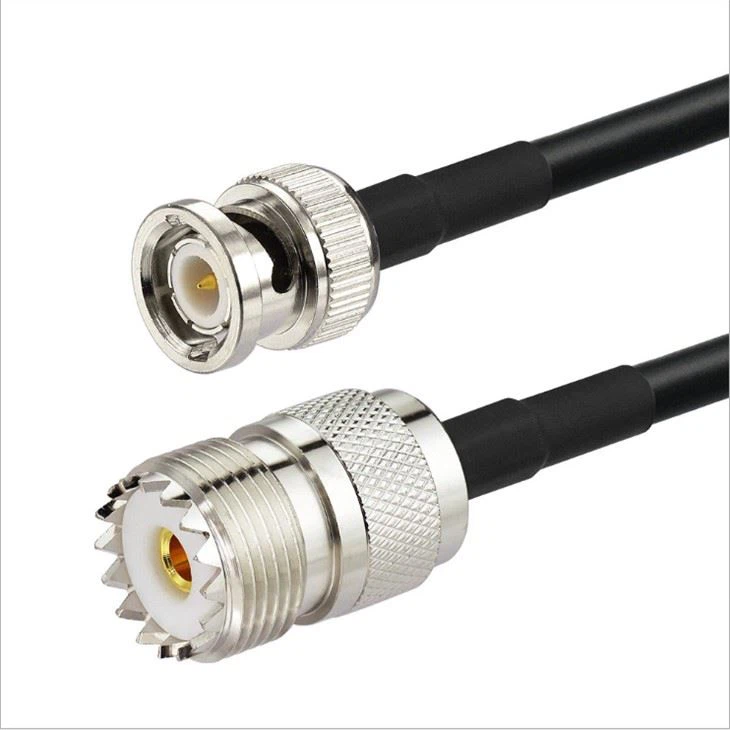

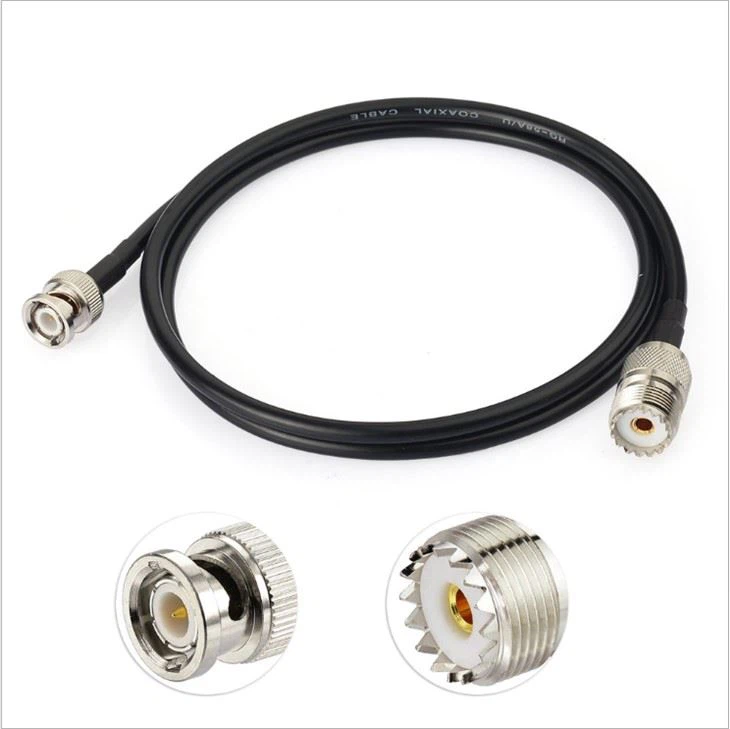

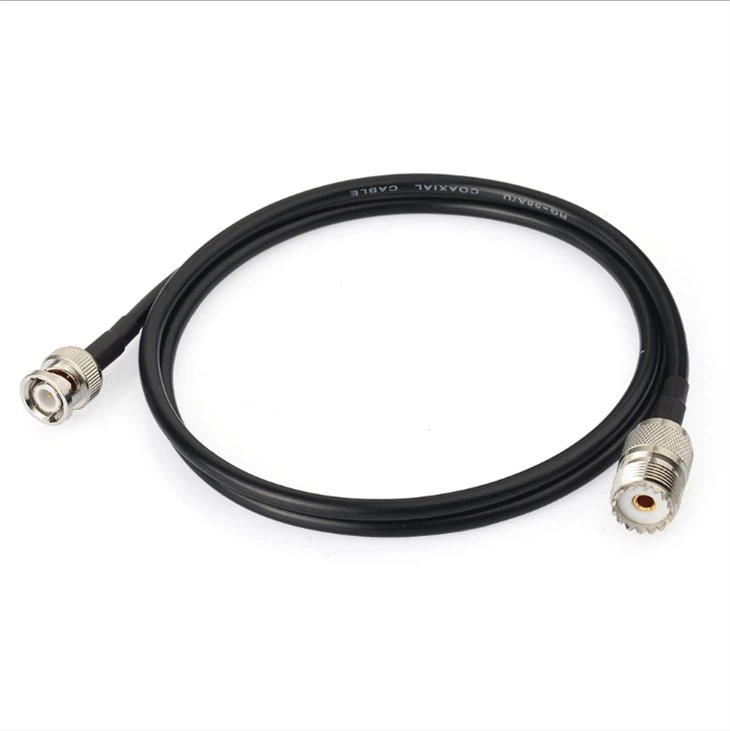

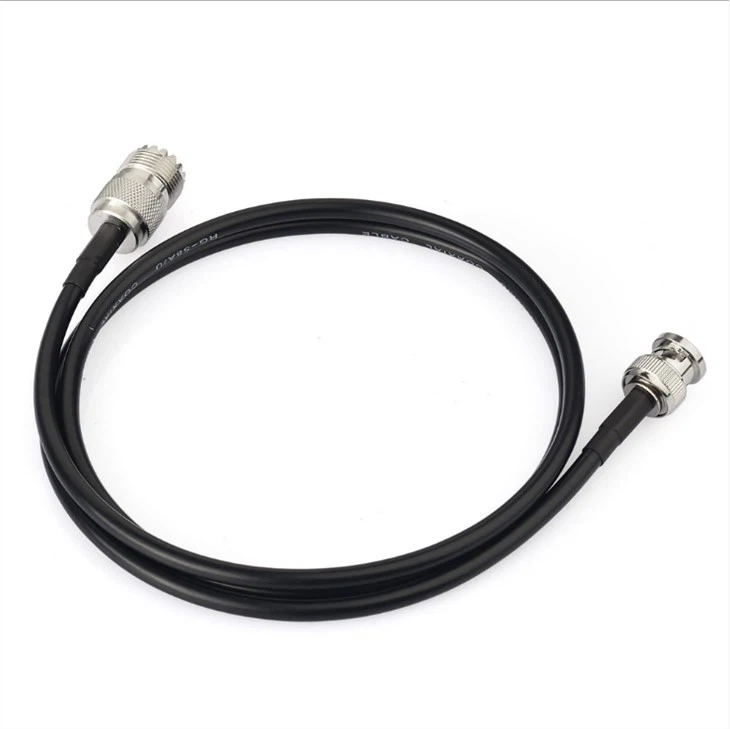

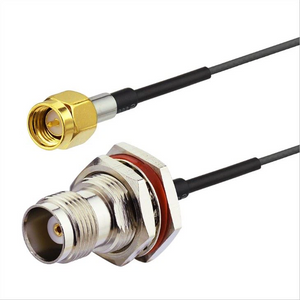

BNC MALE TO UHF FEMALE JUMPER RG58

RG316 Coax Construction/RG316 同轴电缆结构

OD/直径 (mm)

Conductor/导体:

7/0.12   Silver-coated Copper Clad Steel (SCCS)/镀银铜包钢

0.51

Dielectric/绝缘体:

Extruded Solid Polytetrafluoroethylene (PTFE)/聚四氟乙烯

1.52

Shield/屏蔽层:

Silver Plated Copper (SPC)/镀银铜

1.95

Jacket/护套:

Extruded Fluorinated Ethylene Propylene (FEP)/聚全氟乙烯

2.50

RG   316 Cable Physical Characteristics/RG 316 电缆物理特性

Weight per/重量100m:

1.6kg

Minimum bend radius/最小弯曲半径:

15mm

Operating temperature range/工作温度范围:

－55℃ to +200℃

RoHS compliance/符合RoHS:

2011/65/EU (RoHS)

RG-316   Cable Electrical Characteristics/RG-316 电缆电气特性

Impedance/阻抗:

50

+/- 2 ohms

Capacitance/电容:

96.45

pF/m. max

Maximum voltage/最大电压:

1200

Volts

Velocity of propagation/速率:

70

%

Operating Frequency/工作频率:

3

GHz

Screening effectiveness/屏蔽效率

≥ 38

dB (up to 1 GHz)

Insulation resistance/绝缘电阻:

≥ 1 x 108

MΩm

Max. operating voltage/最大工作电压

≤ 0.85

kVrms (at sea level)

RG316 Attenuation/RG316 衰减:

Freq/频率(MHz)

Typical/典型值(dB/m)

Max. CW power/功率 最大值

100

0.262

427

400

0.531

213

1000

0.856

135

3000

1.532

78
