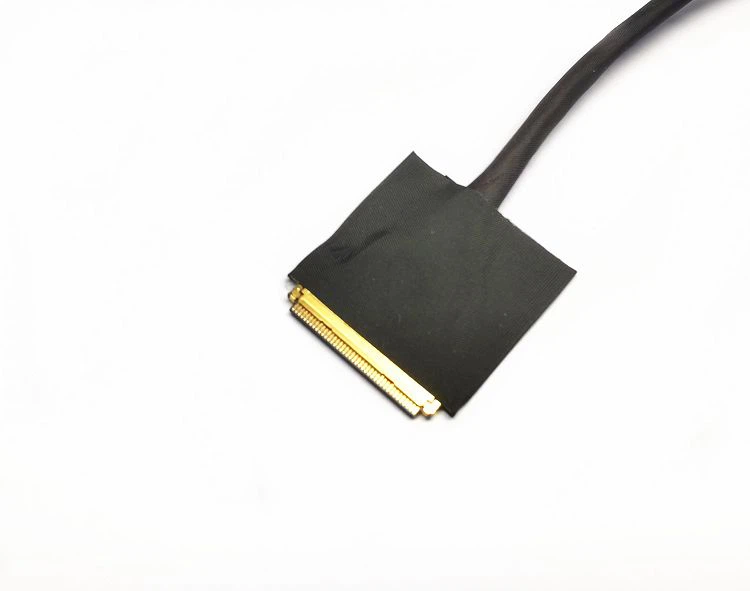

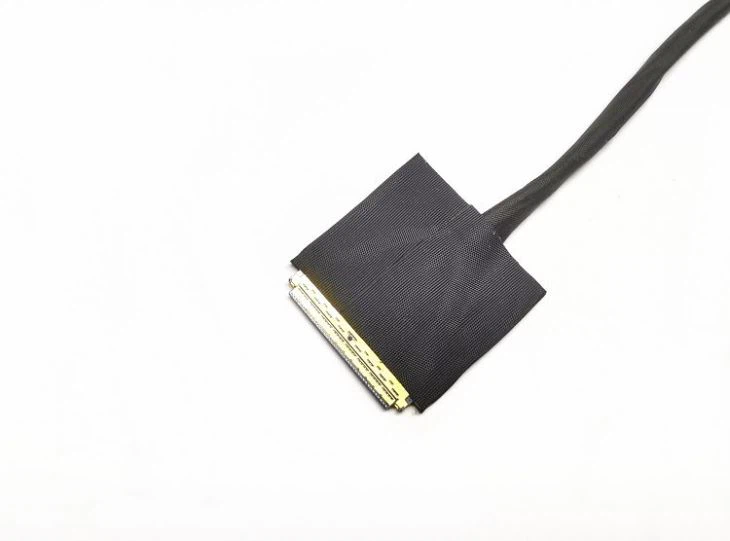

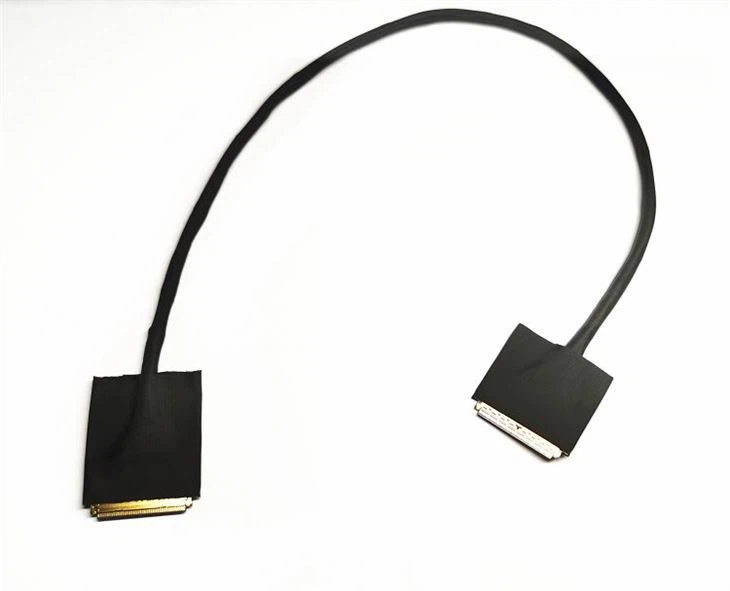

I-PEX 20524-040T Micro coaxial cable
1. Connector type: I-PEX 20524-040T
2. Wire:UL1354# 42AWG Green
3. Cover: Acetate Tape
4. Length: Option
5. MOQ:100PCS
Our Pre-sale Service: we can provide you the professional advice .we can offer you within one day. we can provide professional drawing within one day. Making samples within 3-5 days.
Our Engineer: we have 3-5 experienced engineers who used to work at Hitachi for 15 years.
Our Quality: we use Original I-PEX connectors and High-precision automation equipment. Organize production strictly according to the ISO9001 .All cables must be 100% testing ,even 200% testing .
Our After-sale Service: We will re-make the replacement once these cables have quality issue.
Product Application Areas: UAV unmanned aerial vehicle, Ultra High Definition camera, Tablet PC Etc.
How to produce:
1. Prepare the cable assembly
2. Install the cable assembly on the main body assembly of the male seat, and solder the exposed wires to the signal terminals of the male seat
3. Positioning lock assembly (or lock) male component
4. Cover the male housing and weld the required area to complete the male wiring harness
First, pre-process the ultra-fine coaxial wire to facilitate wire harness assembly. The pre-processed cable is called the cable assembly. This pretreatment simplifies the cable welding process of the connector and improves the stability of the quality of the male harness. This is done before the cable is soldered to the connector.
FAQ:
1. Materials: some materials from JAE, Molex, JST , HRS ,I-PEX etc, other materials from local suppliers
2. Payment term: 100% TT in advance
3. Wire quality: All wire must be UL approved.
Contact Infos:
1. E-mail:Aimee@Topfive-Cable.Com
2. Skype ID: lucialiu50
