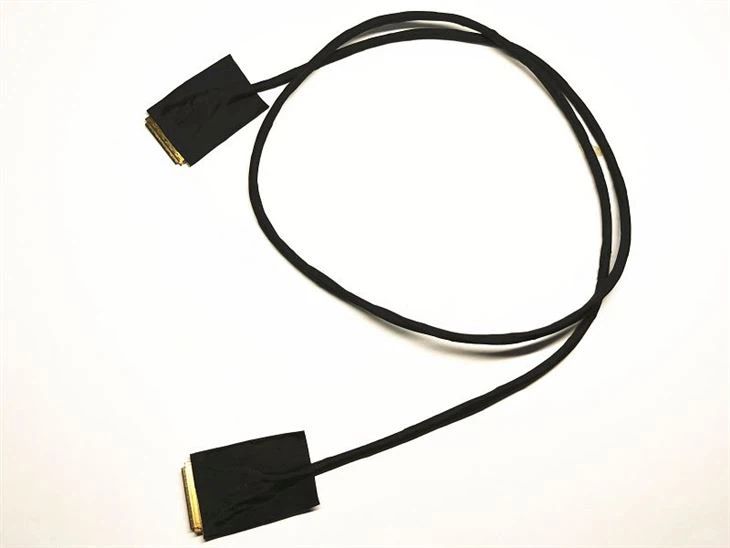

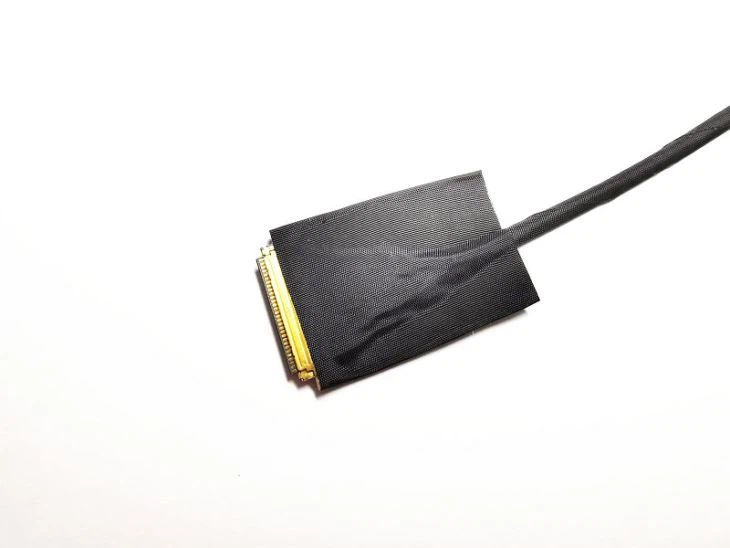

I-PEX 20453-030T Micro Coaxial LVDS cable
1. Connector type: Original I-PEX 20453-230T-11 both sides
2. Wire:UL1354# 40AWG blue
3. Cover: Acetate Tape
4. Length: Option
5. MOQ:100PCS
Our Pre-sale Service: we can provide you the professional advice .we can offer you within one day. we can provide professional drawing within one day. Making samples within 3-5 days.
Our Quality: we use Original I-PEX connectors and High-precision automation equipment. Organize production strictly according to the ISO9001 .All cables must be 100% testing ,even 200% testing .
Our After-sale Service: We will re-make the replacement once these cables have quality issue.
Product Application Areas: UAV unmanned aerial vehicle, Ultra High Definition camera, Tablet PC Etc.
Why we use micro coaxial wire:
Reduce return loss:
The center conductor, insulator and outer conductor of the ultra-fine coaxial line are matched appropriately, and the performance is stable under a specific impedance. The matched and stable impedance produces low return loss.
Reduce insertion loss:
Compared with FPC/FFC, the ultra-fine coaxial line can ensure a larger cross-sectional area of the center conductor when matching a specific impedance, thereby minimizing the insertion loss.
Improve shielding performance:
The outer conductor acts as an electromagnetic shield, so the electric signal transmitted on the center conductor is not easily affected by electromagnetic waves (electromagnetic noise) from the outside. In addition, the shielding effect of the outer conductor helps reduce crosstalk between signals.
FAQ:
1. Lead time : 15-20 days
2. Price range:USD5.0-USD8.0/PC
3. Packing :Waterproof bag + export carton
