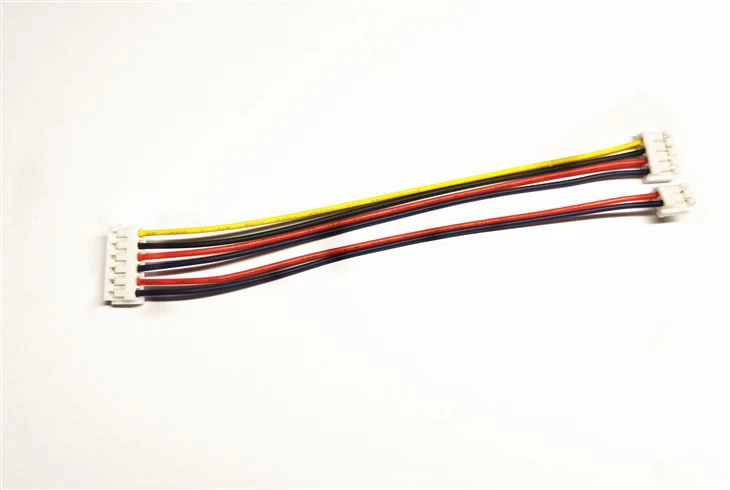

EHR-6 TO EHR-4 WIRE Harness

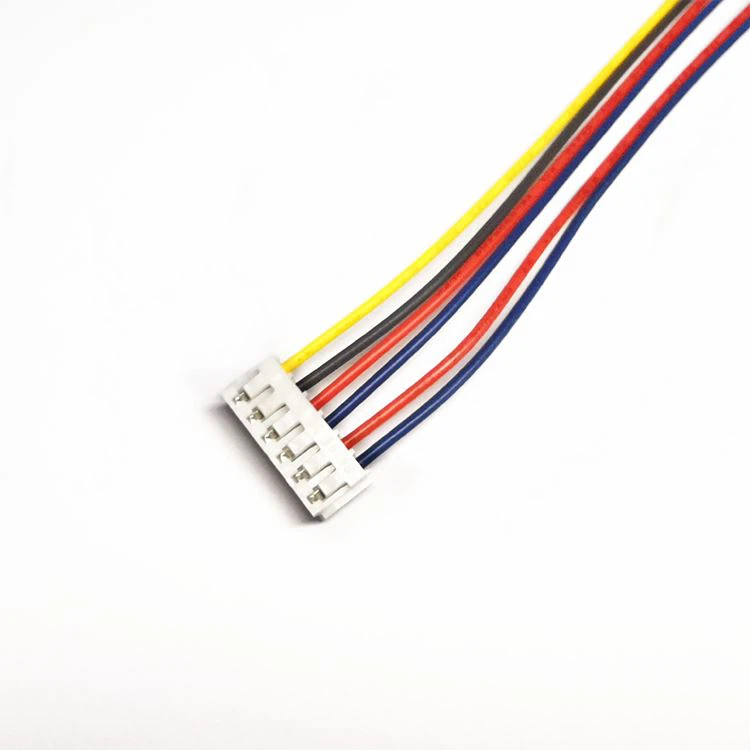

1. One side: JST EHR-6

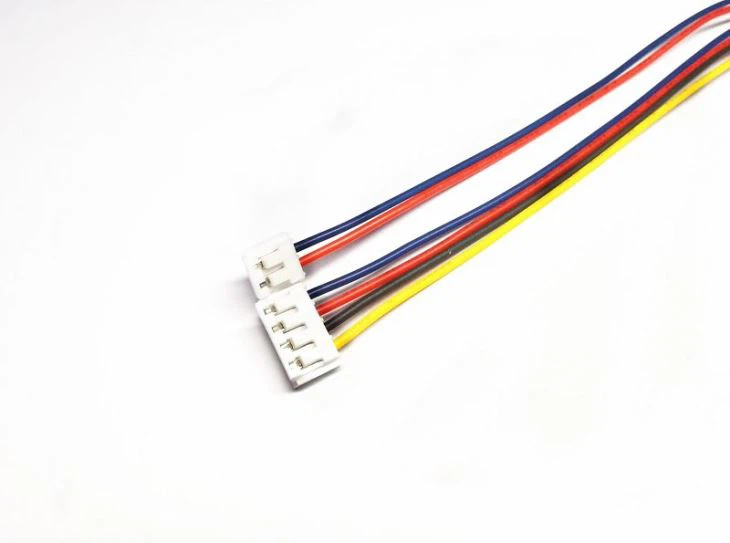

2. The other side: JST EHR-4 & EHR-2
3. Wire: UL1007# 26AWG
4. Length: Option
5. MOQ:500PCS
The wiring harness is the wiring part that connects the electrical equipment in the circuit, and consists of an insulating sheath, wiring terminals, wires, and insulating wrapping materials.
1. Wire harness
In order to facilitate installation and maintenance, and to ensure that electrical equipment can work under the harshest conditions, the wires of different specifications and different colors used in the electrical equipment of the whole vehicle are combined into one through a reasonable arrangement, and the wires are bundled with insulating materials. Bundles, which are complete and reliable.
2. Normal selection of wire cross-sectional area and color code 1) Correct selection of wire cross-sectional area
The electrical equipment on the car selects the cross-sectional area of the wire used according to the size of the load current. Electrical equipment working for a long time can choose 60% of the actual carrying capacity of the wire; electrical equipment working for a short time can use 60%-100% of the actual carrying capacity of the wire.
2) Selection of wire color code
In order to facilitate identification and maintenance, the wires in the wiring harness are in different colors.
For the convenience of labeling in the circuit diagram, the colors of the wires are indicated by letters, and the colors of their representatives are noted in each circuit diagram.
FAQ:
1. Samples cost: Free
2. Lead time of samples:3-5 days
3. Mode of Transportation: UPS , FEDEX ,DHL etc.
Contact Infos:
1. E-mail:Aimee@Topfive-Cable.Com
2. Skype ID: lucialiu50
